Symington’s

This Yorkshire based food manufacturer is responsible for some of the UK’s favourite household brand names such as Aunt Bessie’s and Mug Shot and Chicken Tonight.

SCROLL

V6A9141-1

K e y   S t a t s

CO2 saved per year

52,326kg CO2 saved per year

Saved over 25 years

£766,400

Electricity generated

100% electricity generated used onsite

System Size

227 kWp

Panels Installed

822 Trina 270Wp

Annual Output

181 MWh

The Challenge

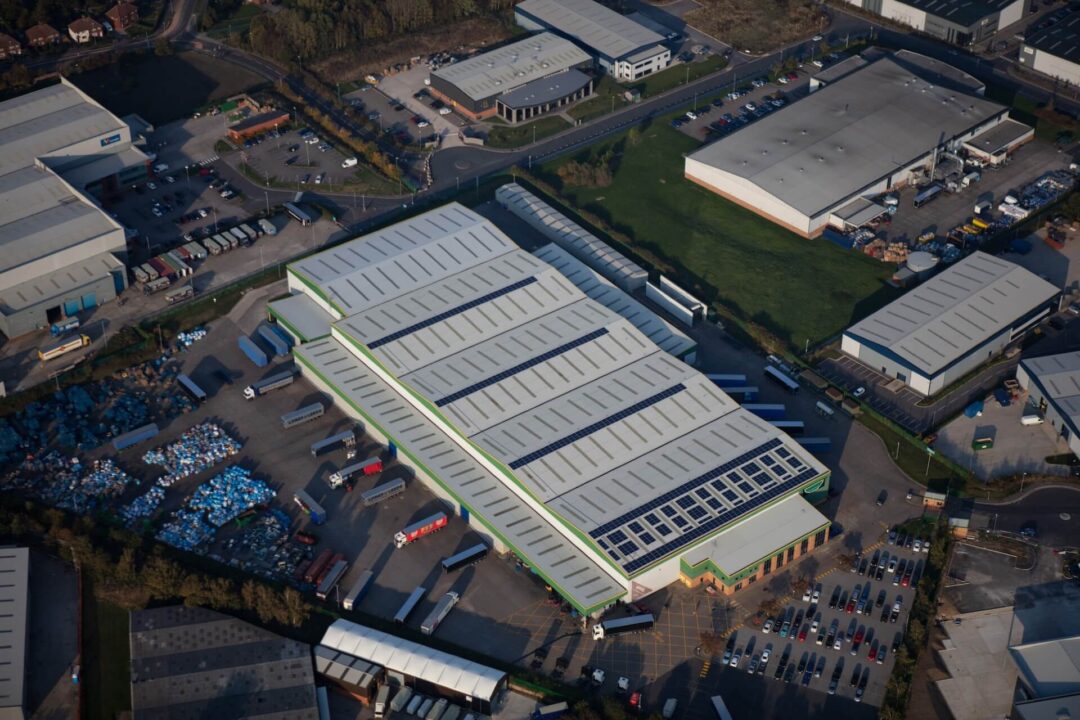

Historically, Symington’s were one of the first manufacturers to promote the advantages of a healthy diet by producing a range of Egyptian food in the 19th Century. Today, the food manufacturer’s portfolio include household brands such as Aunt Bessie’s, Mug Shots and Chicken Tonight. Distributing all these popular products creates large demand on the grid as well as a large carbon footprint. To reduce this, Syzygy consulting were brought in to advise on carbon reduction and tendered for the installation of solar on Symington’s Thorne Farm warehouse in 2018. We were awarded the contract after a successful bid: a spec to meet the demands of the roof’s structural requirements.

In order to minimise disruption to staff onsite, we erected a scaffolding tower at the side of the building to ensure there was no loss of operations from production. The 227.88 kWp system was required to be installed in zones, with skylights and a D Marc system used to remove the possibility of any falls occurring – this in turn meant no internal equipment was required.

OUR SOLUTION

The system was designed with SolarEdge technology to maximise the generation. SolarEdge enabled systems operate solar modules to perform individually within a string to stop poorly performing modules reducing output for the whole string; this could come from shading. Not only will this make the system up to 25% more efficient, but the array is also safer and easier to maintain. Symington’s can also check the performance of each inverter and module 24/7 via the free web portal. Being able to quickly identify any issues with the array allows for prompt remedy by our operation and maintenance team.

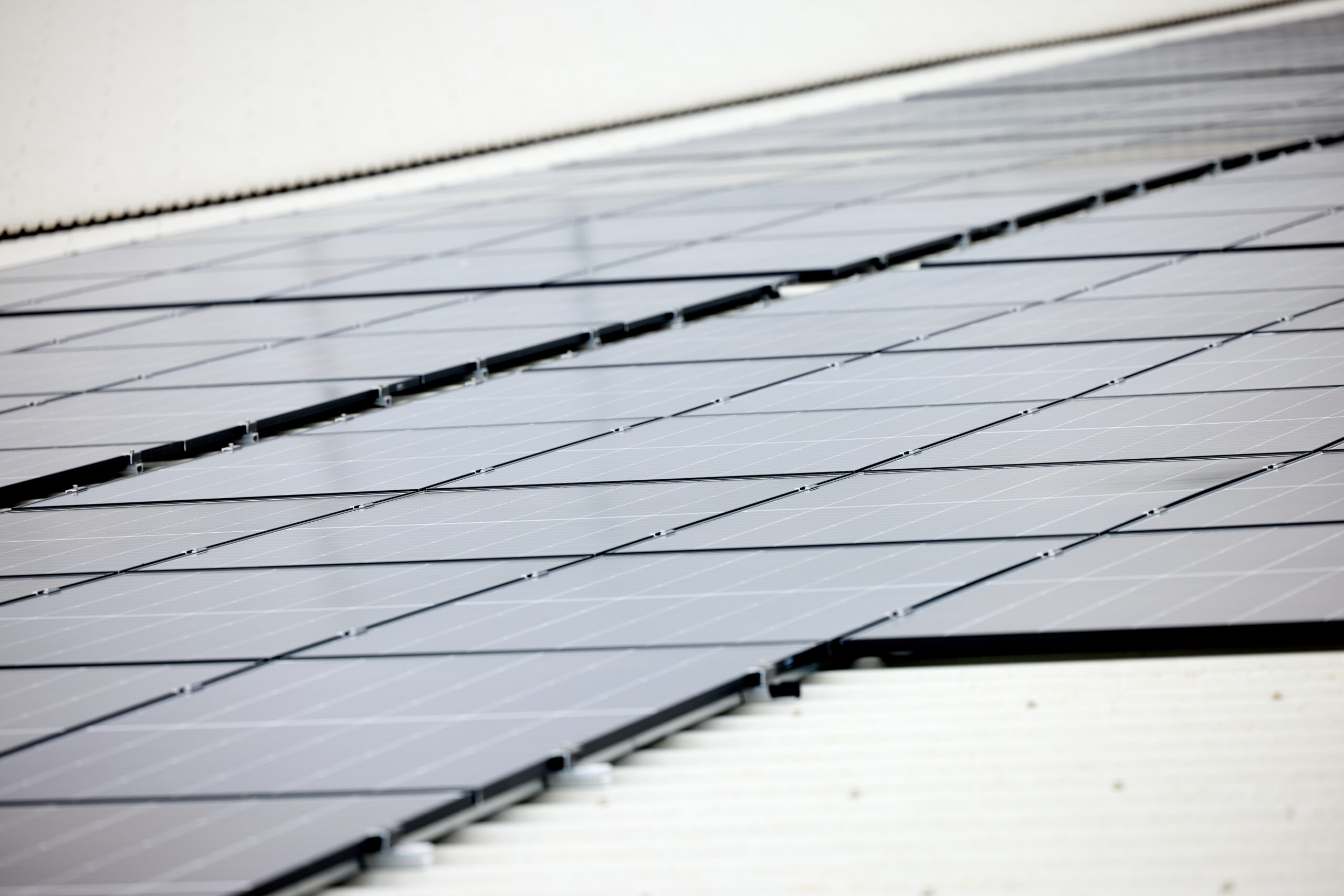

Our team worked over a four-week period to install 822 Trina 270Wp panels along the top of the roof. Now complete and commissioned, the system is generating over 181.8 MWh of clean energy every year, the equivalent to preventing 119 barrels of oil being consumed annually.

THE RESULTS

Overall, the project went smoothly while there were some challenges in regard to installing in zones around the skylights; however, these were quickly and safely overcome.

One of the most interesting elements of this project was the high level of staff engagement towards the work we were conducting onsite, from the fork lift truck drivers to senior management, demonstrating the level of commitment Symington’s have to making a greener future not only for the company, but also to the wider local community.

To allow easy access to both lower and upper roofs, a 2 stage CAT ladder was installed to provide our operation and maintenance engineers access to the roof for future inspections to make sure the system meets expected performance levels and gives good returns on their investment.
