National Cycling Centre

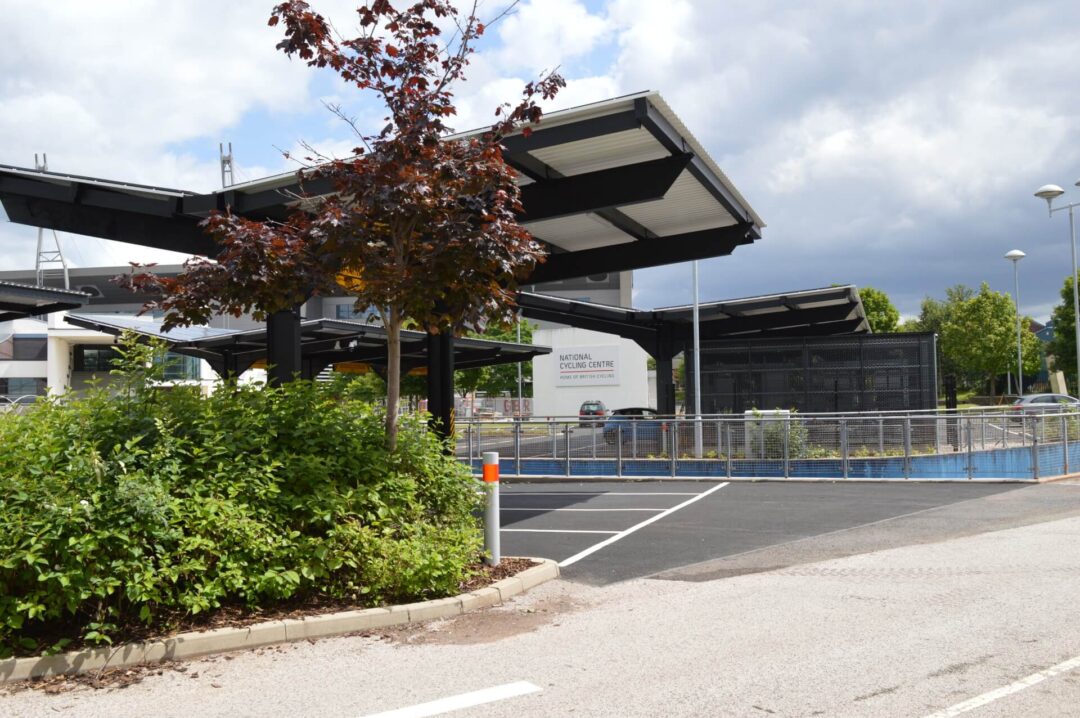

EvoEnergy embraced Manchester City Council’s vision for a solar carport system at the National Cycling Centre. Our design team crafted an asymmetrical Y-shaped canopies, 3.5 meters high for taller vehicles. With consulting services and thorough energy modeling, we ensured seamless grid connectivity.
K e y S t a t s
Trina TSM 425 DE09 R
The National Cycling Centre is an iconic building originally in constructed in 1994 and is home to the British Cycling Team. Given the long span of the roof over the velodrome, it is unable to hold the extra weight of traditional solar panels.
The building has undergone an extensive amount of sustainable refurbishment like improving insulation, LED lighting and replacing gas boilers with air source heat pumps. As part of this process, Manchester City Council wanted to investigate the possibility of solar carports for the site.
This installation was part funded by the European Regional Development Fund and Manchester City Council.
This innovative scheme was part of the “Unlocking Clean Energy in Greater Manchester” project, led by Energy Systems Catapult, and includes a number of renewable energy schemes across Greater Manchester, all of which are part supported by the European Regional Development Fund.
MCC procured the project through an existing construction framework, Warden Construction were awarded the project as Main Contractor in September 2022. EvoEnergy worked closely with Warden and its advisors throughout 2022 to design the solar carports up to Stage 3 designs with many unique features including, asymmetric canopy roofs to maximise generation whilst resolving how drain pipes would reach the floor in a sensible fashion and water runoff.

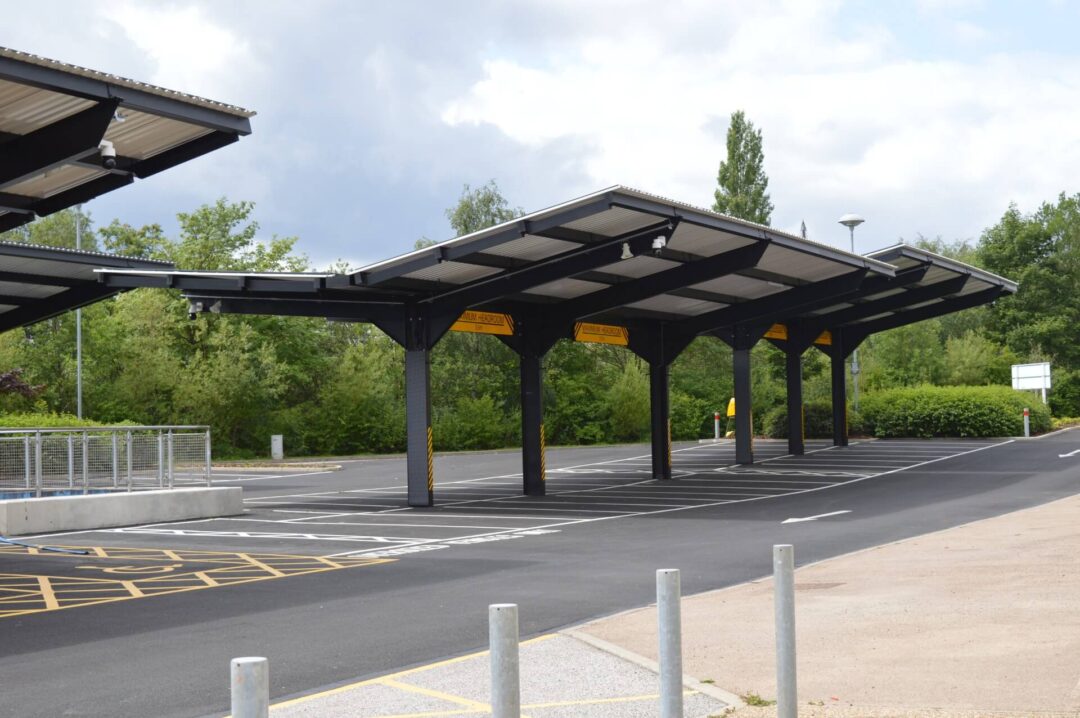

As users of the carpark often have bicycles on roof racks, the carports were built with a 3.5m clearance height and prominent signage to prevent accidental damage to often high specification bicycles. MCC requested the frames be carbon grey, but roof sheets were kept pale grey to reflect light back onto the carpark deck.

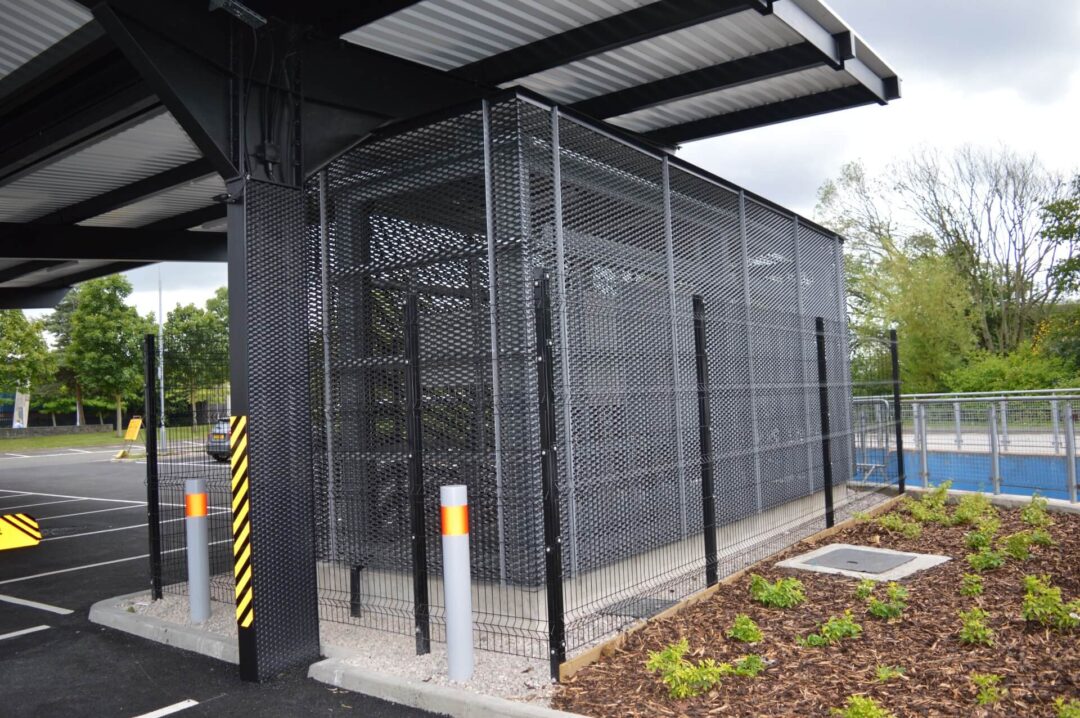

Normally EvoEnergy would seek to locate solar inverters inside a building’s plant room so they are secure and easy to maintain, however due to the highly utilised velodrome, there was no space available internally, so a ventilated cage was installed with a secure fence around, again in black, to match the carport frames.
To improve monitoring visibility increase safety and reduce the impact of localised shading, a Solaredge Module Level Power Electronics system was used improving generation energy. Both downlighting and uplighting were installed to give a striking user experience at night.
CCTV was installed on the carport frames for security.
The project was completed in July 2023 with the carpark resurfaced and parking spaced re-marked out.
From the outset, EvoEnergy worked collaboratively, with ease, to design the innovative car ports which were installed at the Velodrome. Throughout, the whole team maintained their focus on the end user and dealt with design changes in a professional and timely manner. EvoEnergy’s team integrated expertly with Warden’s experienced project team, to mitigate any risks and challenges, contributing greatly to the extensive successful outcomes of the Manchester Velodrome Decarbonisation Scheme.
Laura Atkinson, Warden Construction
